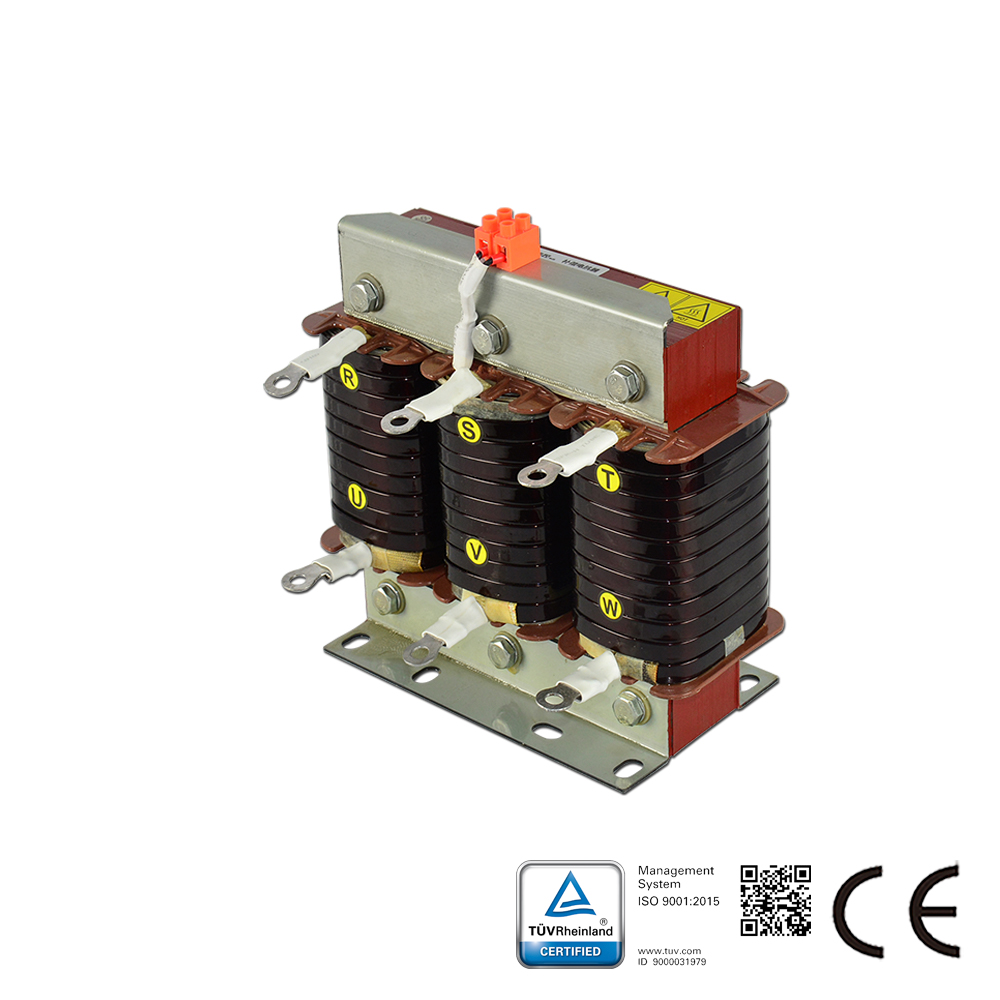

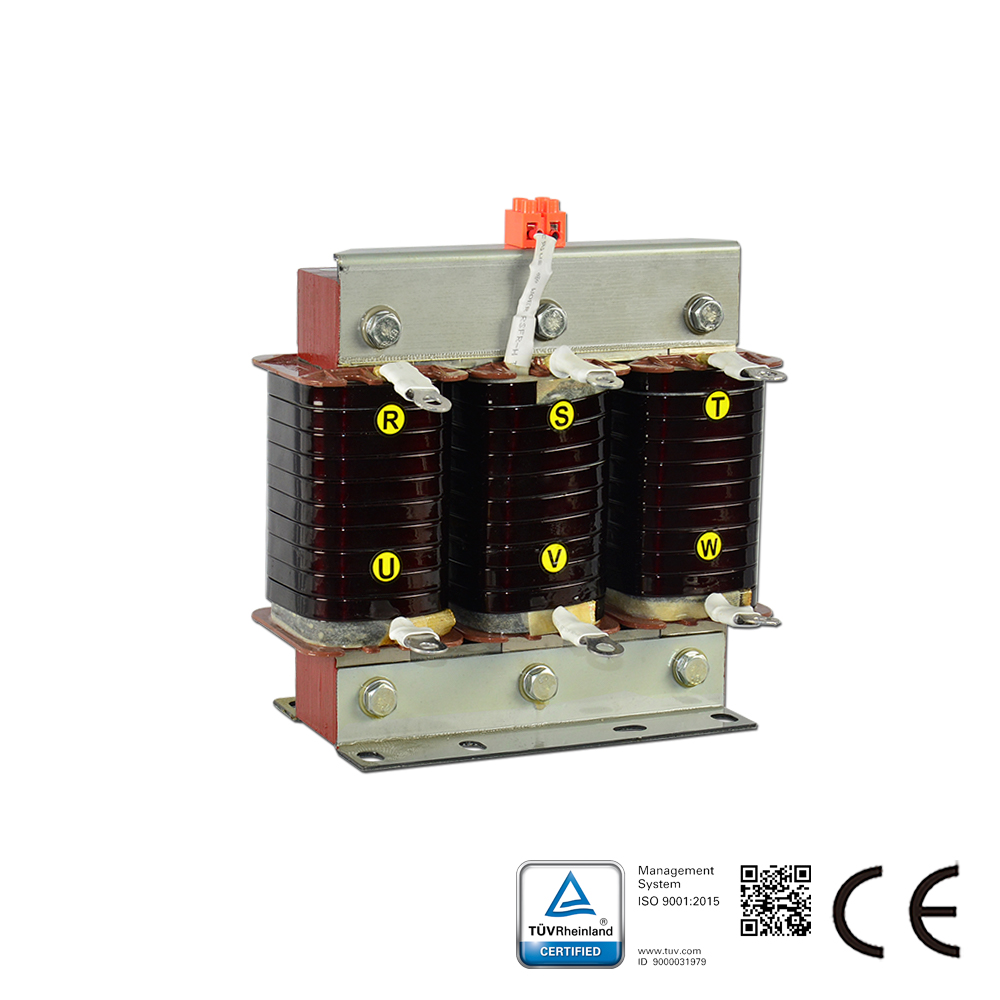

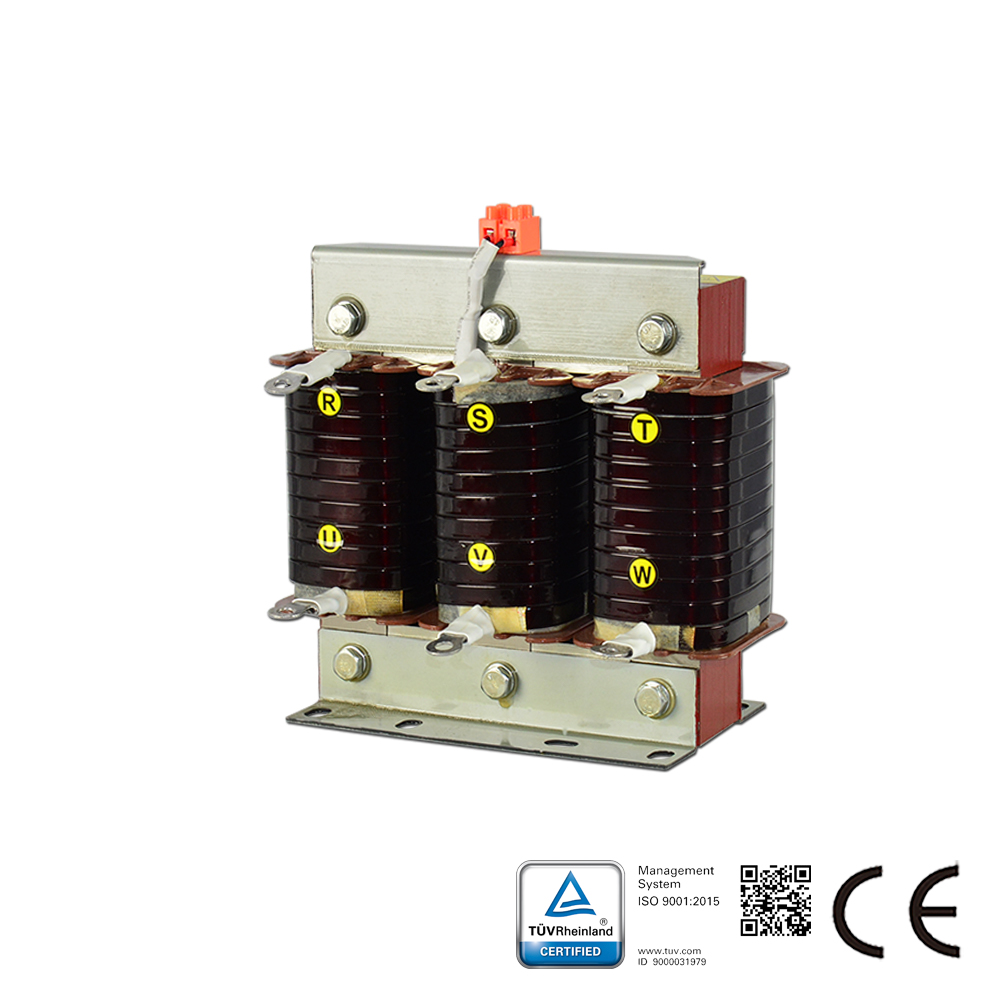

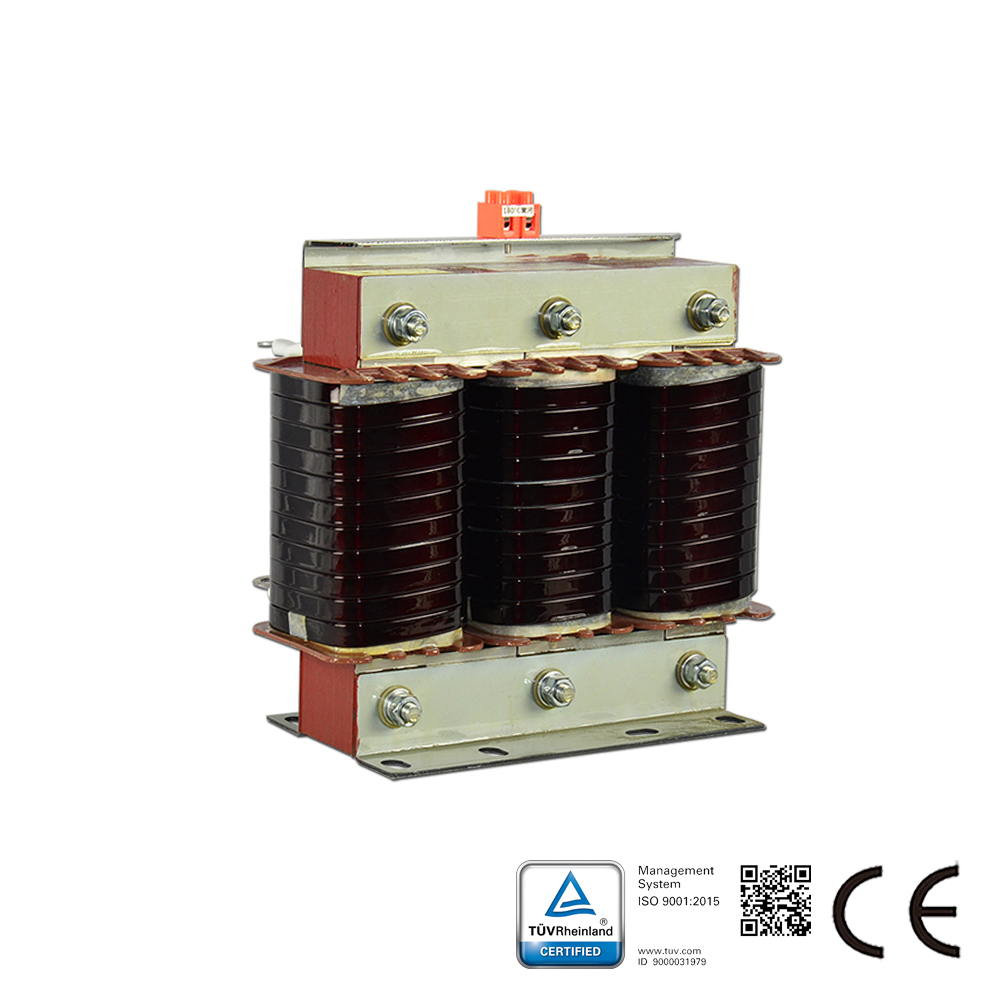

CKSGL series detuned chokes are placed in reactive power compensation application and used to prevent parallel resonance and amplification harmonic current occurring.

Material Features:
High heat resistance level, high insulation strength, safe and reliable
Core with cold-rolled silicon steel sheets, low loss and good performance in high frequency.
High linearit and high overload capacity.
VPI process makes immersion oil fully, thicker oil film, low noise and corrosion resistance.

Characteristic of this series:
Capacity: 0.35kvar-7.49kvar
Voltage grade: 380V/480V/690V/1140V
Voltage drop: 6%,7%,12%,14%
Operating frequency: 50/60Hz
Protection class: IP00
Insulation class: F
Terminals: copper clad aluminum or aluminum

Application:
Restrain high harmonic, limit operating impulse.
Improve system power factor, prevent harmonic capacitor causing harm results.
Avoid excessive amplification and resonanceof harmonic wave to the power grid when capacitior equipments access in.
